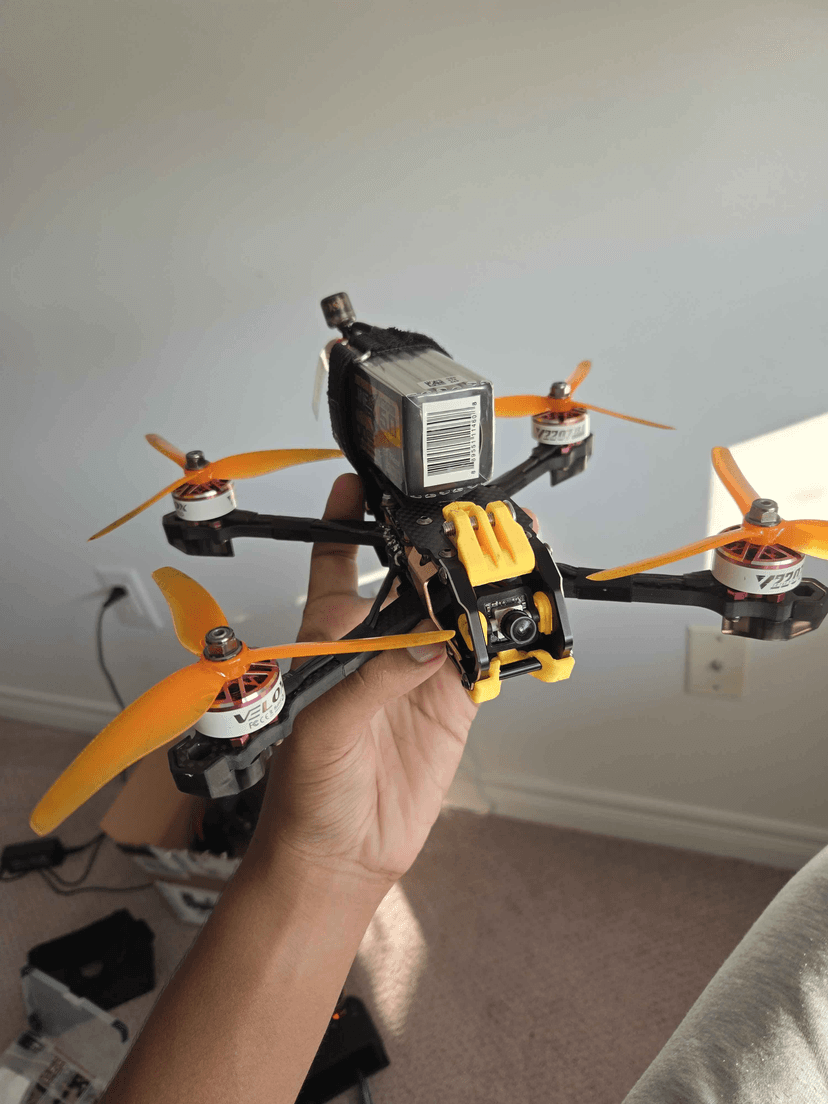

i designed my own ELRS transmitter capable of long distance transmitting to a drone
github.com/blazecoding2009/elrs-tx-module

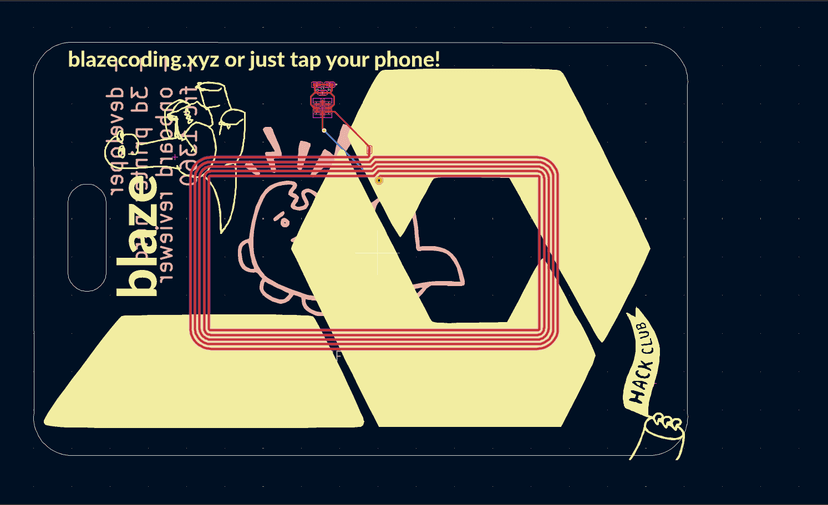

it's compatible with every radio out therJust made my own nfc card in kicad! ty @\ryan for the help!
i now have actually fixed my website and aded stuff about my latest internship at DRDO-AT-DYSL!

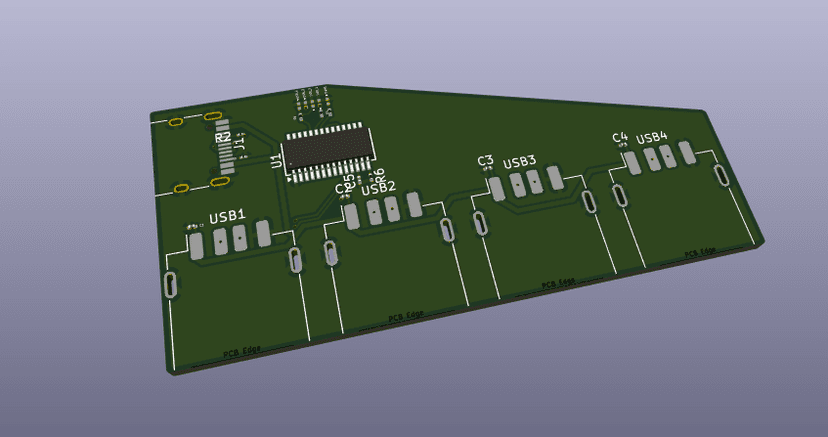

just created a usb hub! 4 USB A out, 1 USB C in, supports upto 400mb up/down on each port (untested)

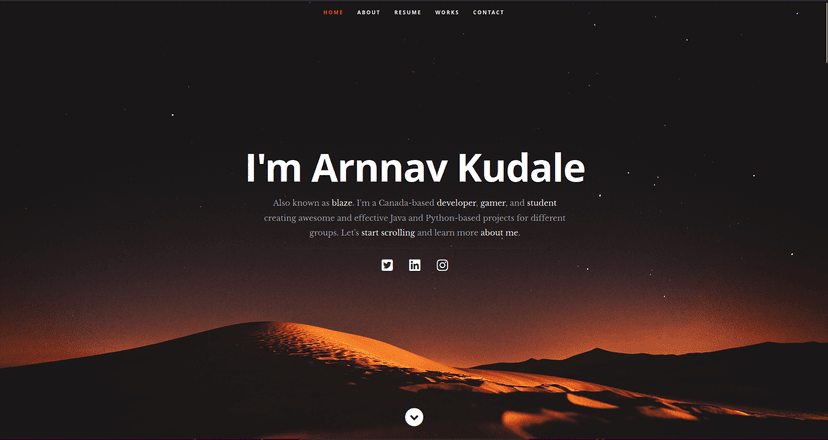

i basically fixed up my website and added a proper skills section! (i fixed smoothscrollling and the taskbar ) blazecoding.xyz
turns out that i had lots of more stuff to do and i did it! #C078GBDKC03| new pcb rev idkwhatweareonrn

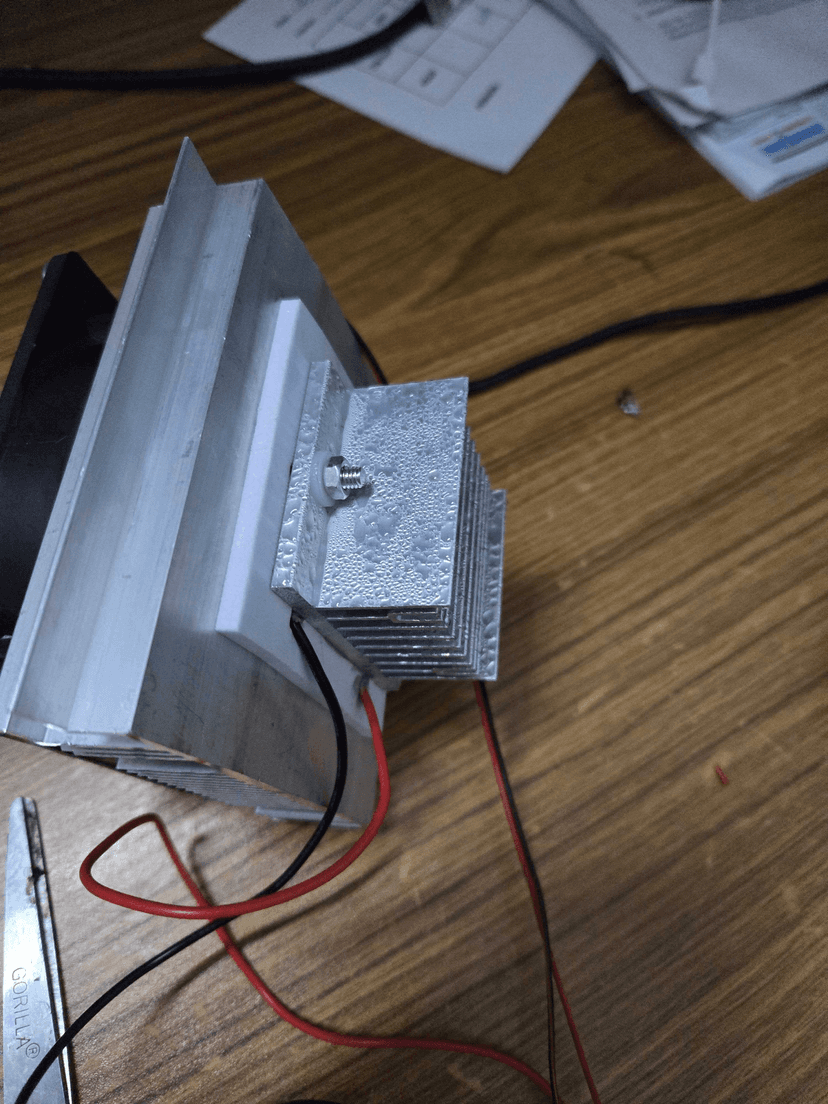

With Dr. Veera Brahmam, I worked on a peltier project which will allow people in high altitudes or areas with no water to be able to get drinkable water through air!
For #arcade and #forge-dev, i recreated out PCB out of 2 layer AND swapped over to the STM32F405
For #arcade and #forge-dev, i recreated out PCB out of 2 layer AND swapped over to the STM32F405

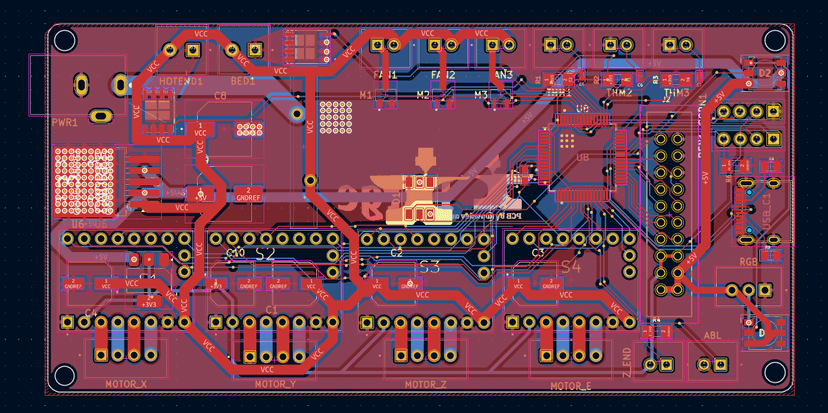

For #forge-dev and #arcade I created a 2-layer PCB version of our motherboard for cheaper manufacturing!

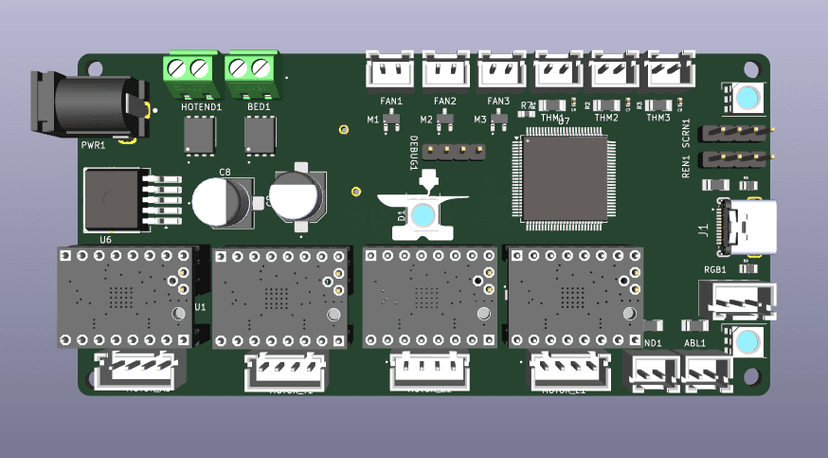

For #arcade and #forge-dev I redid the motherboard with a stm32g0 and 4 layer pcb!
For #arcade and #sprig I created a dino game! I also added an invincibility powerup!

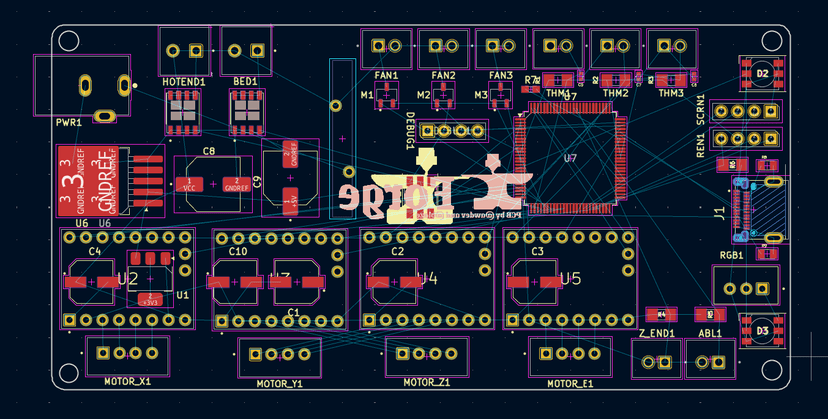

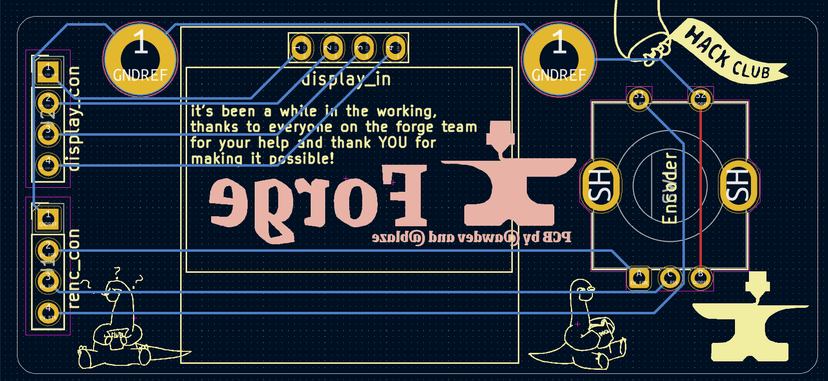

for #forge-dev and #arcade, i redid most of our schematic and PCB for Forge, HackClubs (hopefully) next big ysws (HQ DONT BAN ME, I TOLD EVERYONE THIS ISNT OFFICIAL)
routing will be done by awdev lol

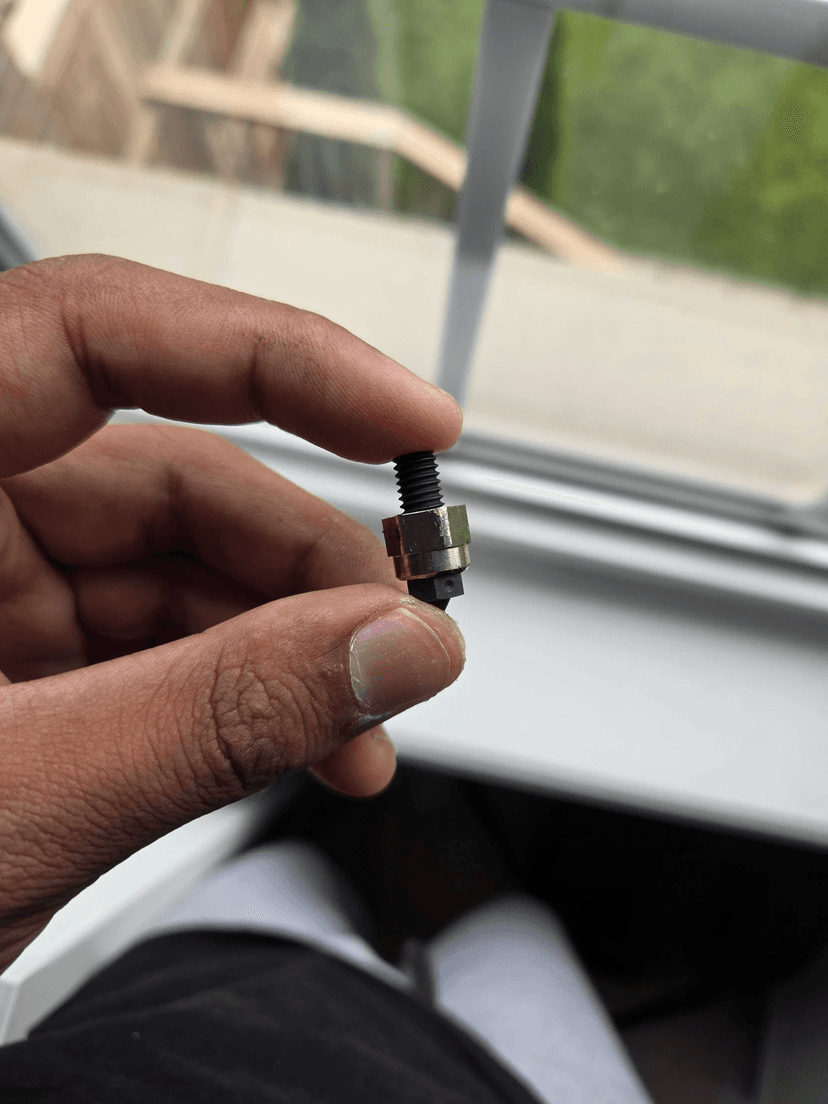

for #arcade, I finished up upgrading my nozzle from a brass to hardened steel. I also got a new GDStime 3010 fan which is 2x more powerful and will stop heatcreep\

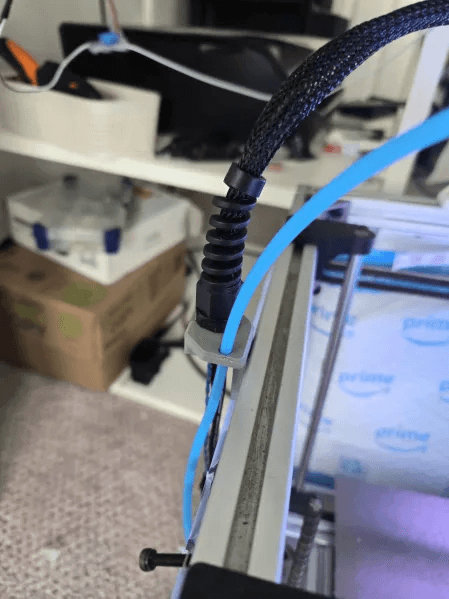

ooh yeah #arcade and i also got strain relief using a PG7 relief thing and installed it onto it (it works so well, my wires are never dying of stress again)

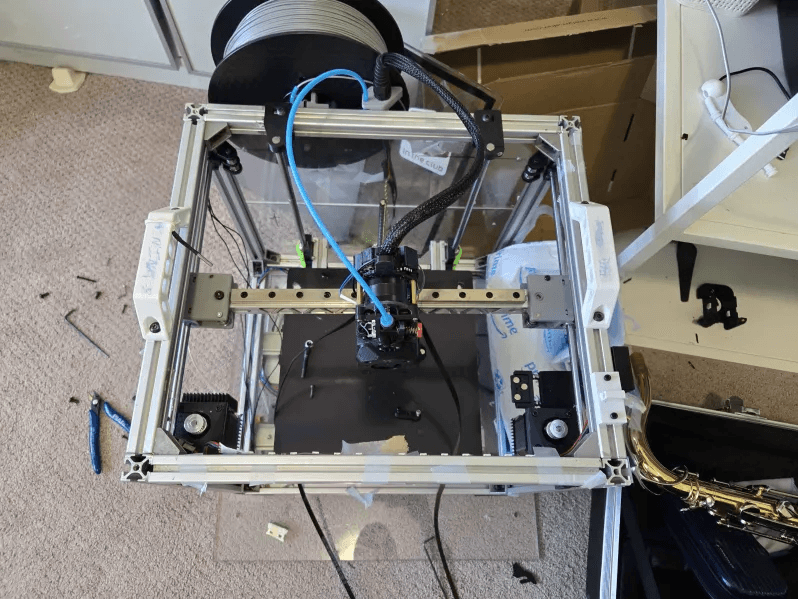

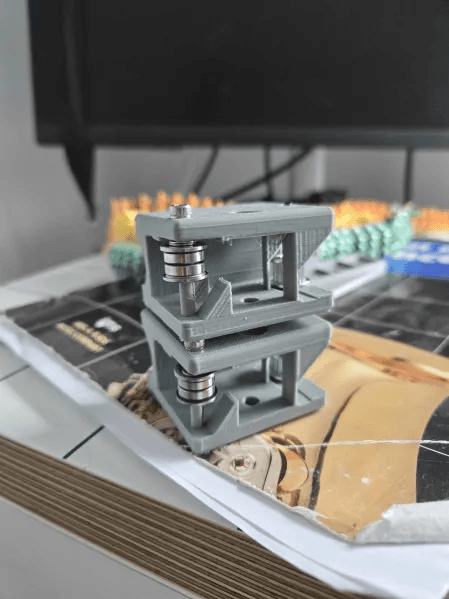

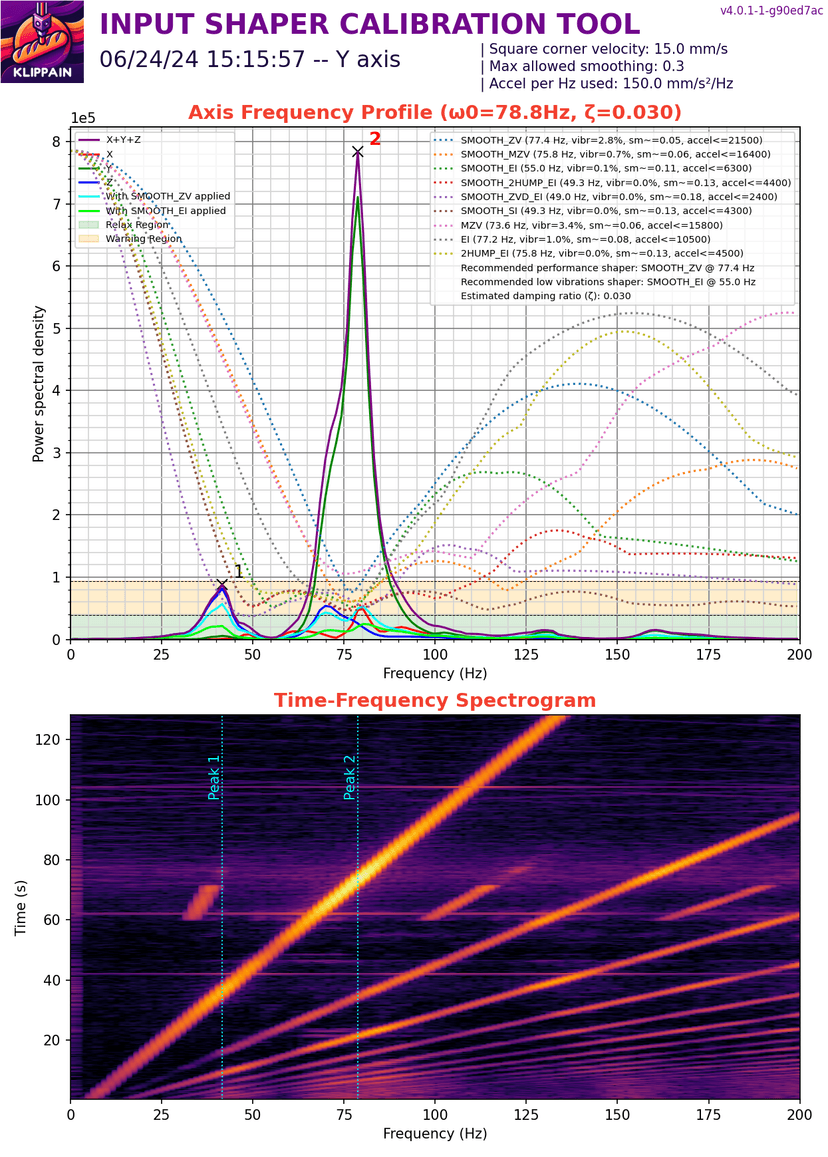

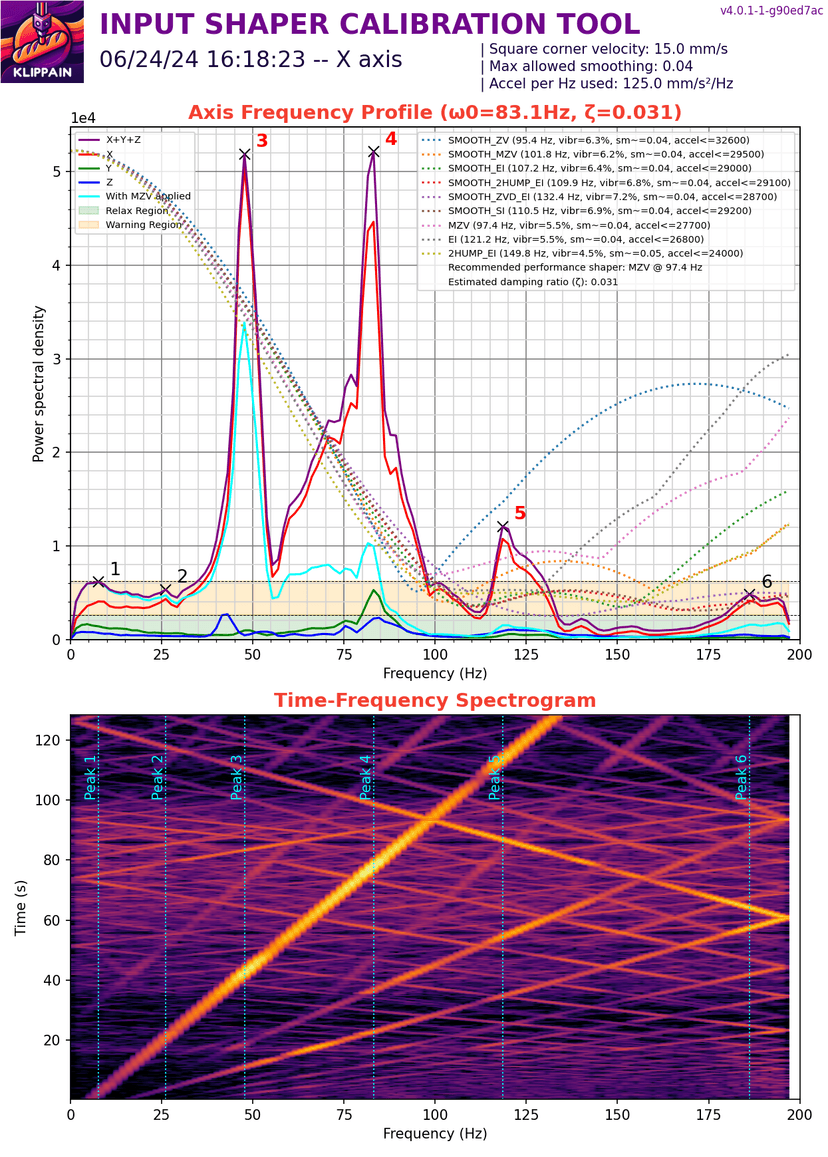

for #arcade, i redesigned and printed out my XY joints which were bulky and not at all sturdy. after this redesign i installed them and am getting much higher Y accelerations and soon™️ x accelerations aswell once i tighten all my screws

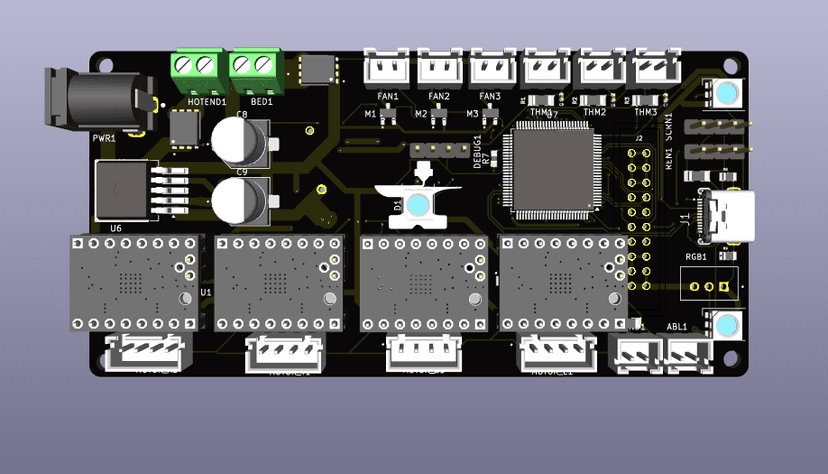

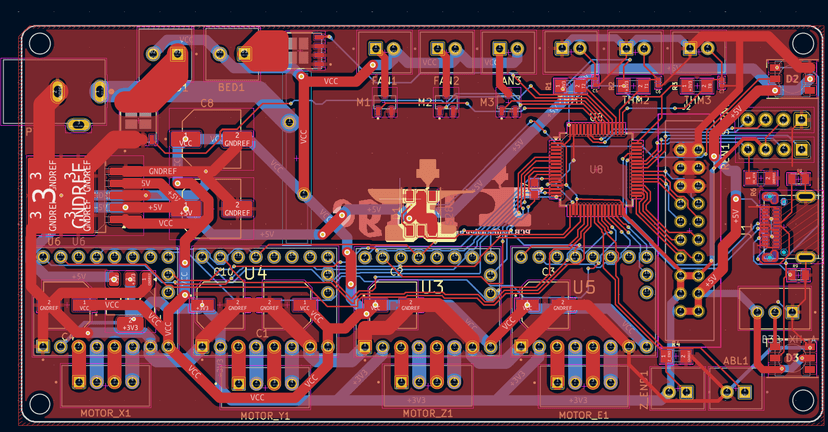

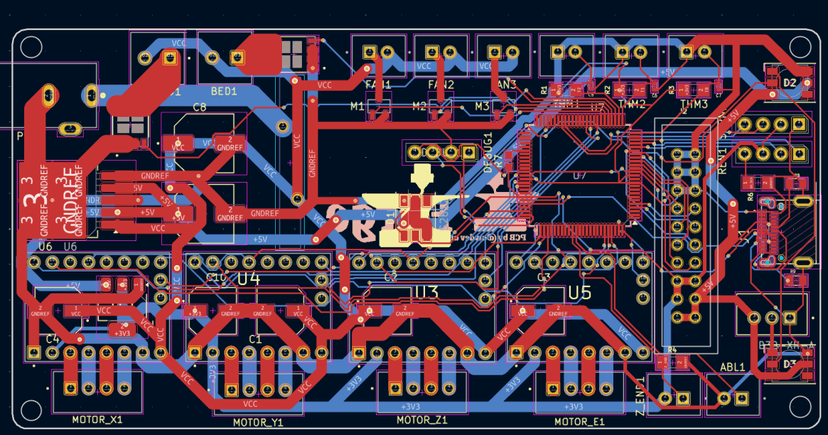

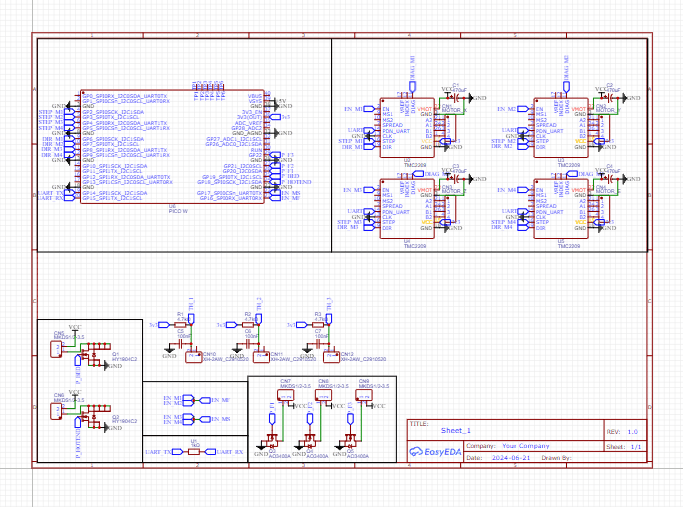

for #blot-3d and #arcade, i started working on a custom 3d prrinter pcb, this pcb has 5 mosfets, 3 thermistor ports, 4 tmc 2209s (soon™️ buzzer and screen and 24v down to 5v/3.3v)

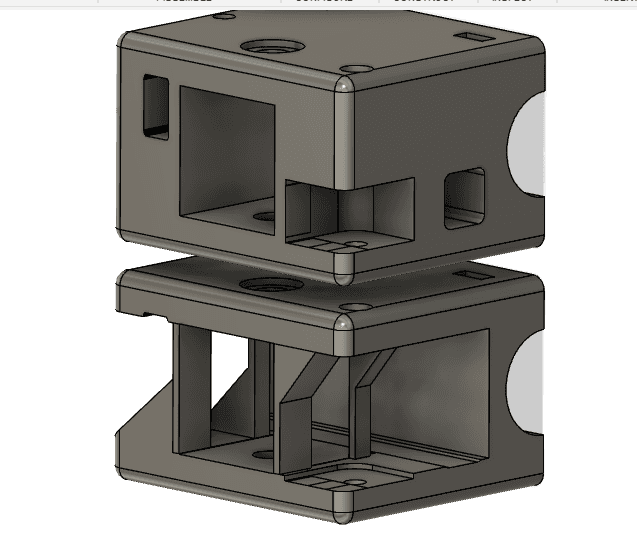

for #arcade, i just finished up a redesign of my XY joints for my printer and have light weighted them. next steps are to make them more optimized ig? and CNCable

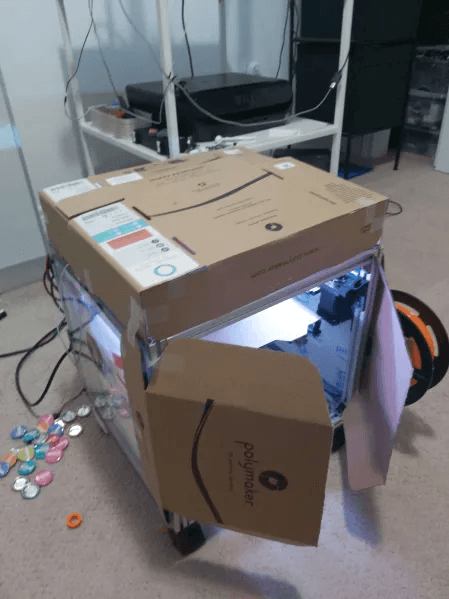

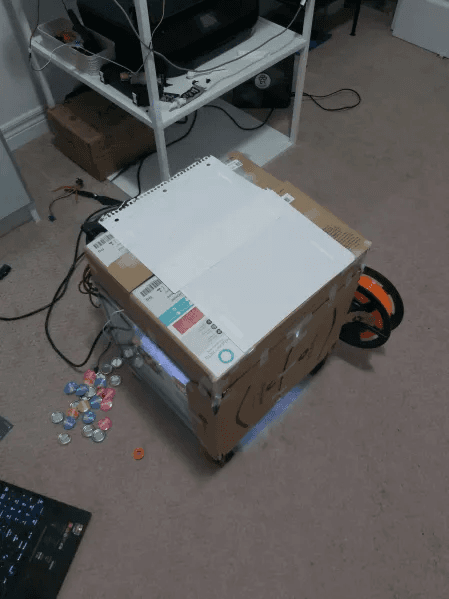

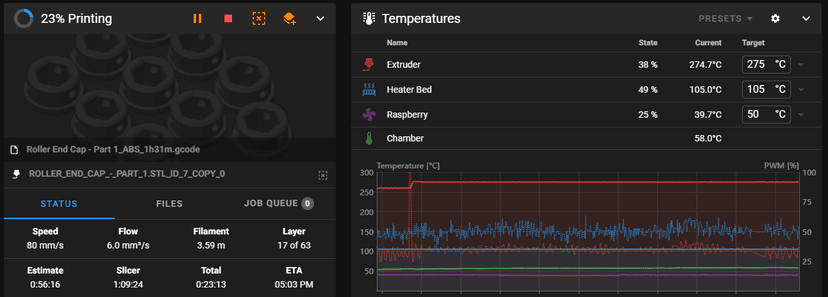

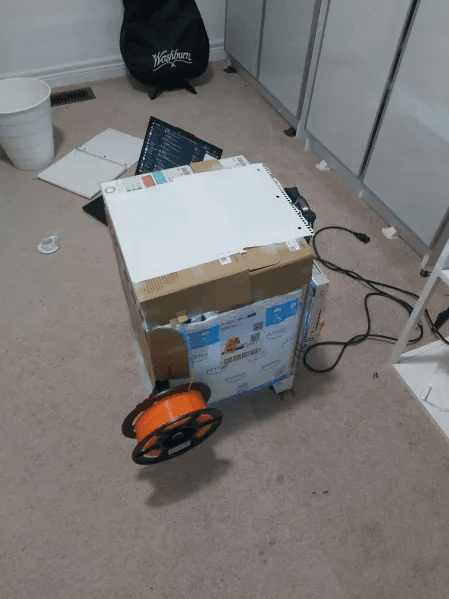

just made a cardboard enclosure for my printer last night, it works surprisingly well and is able to reach 60c without any active heating (only bed which is passive)

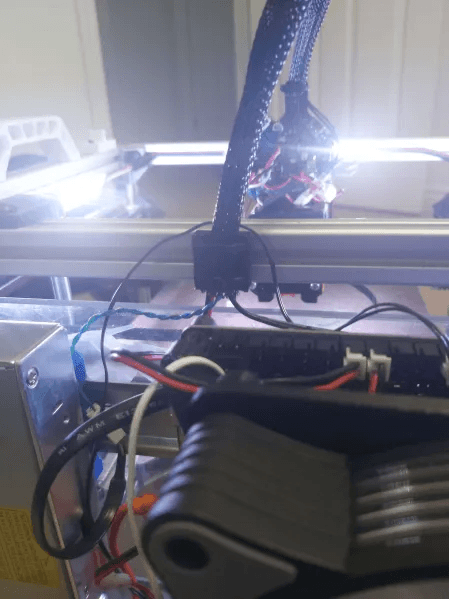

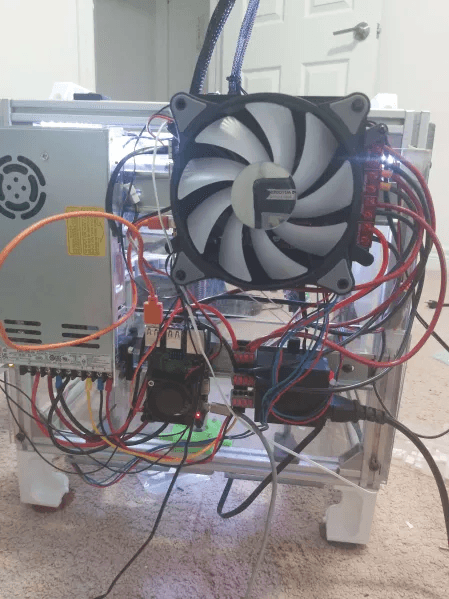

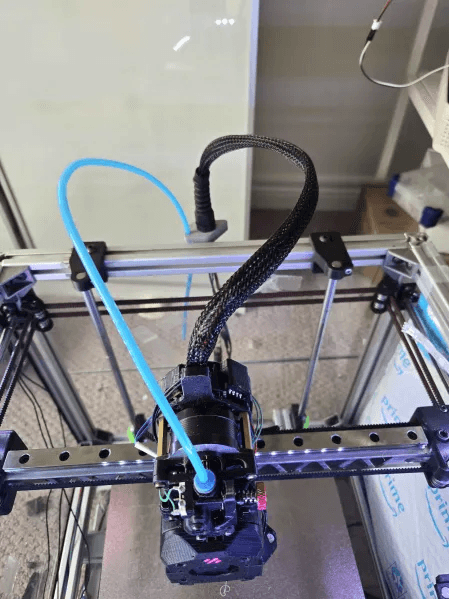

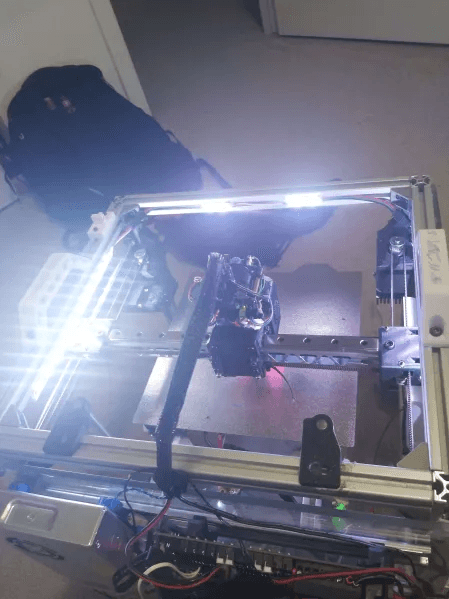

#hack-hour Just finished up my CANbus toolboard setup! Only 6 wires heading back to the mobo compared to 20! (Yeah ik, the back is messy, I'll fix it tonight)
yayreplaced the 2013 kk2.1.5 controller with a much more recent speedybee f405 v3 (ty @rohanth1056-U04HX9JH0BD)

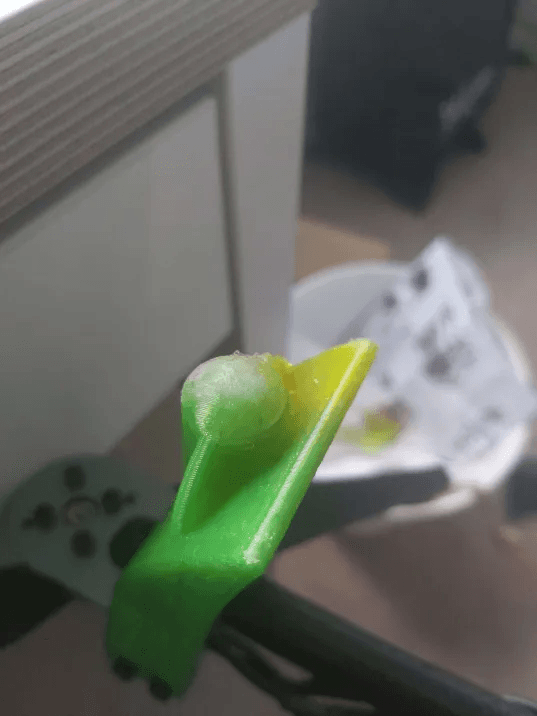

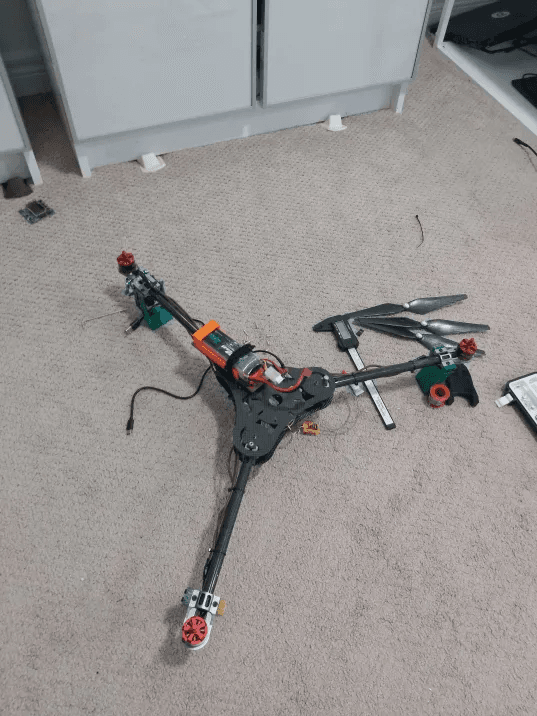

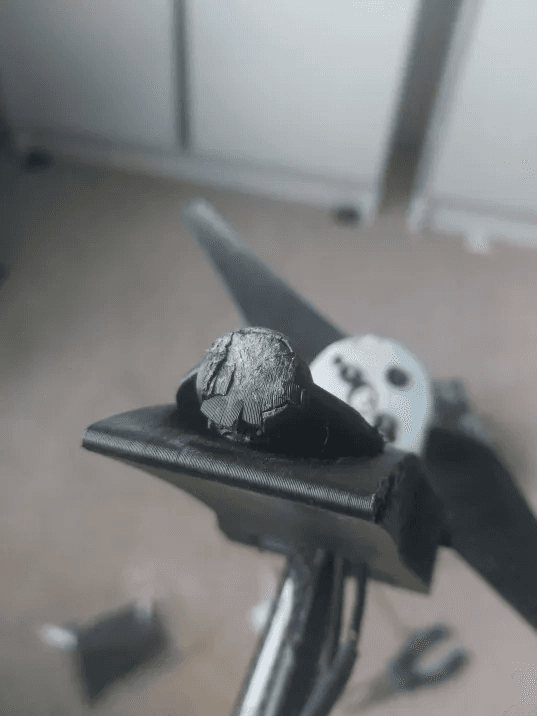

working on some landing feet things for my 1kg tricopter, tpu clearly takes the win here after some quite hard landings on asphalt
